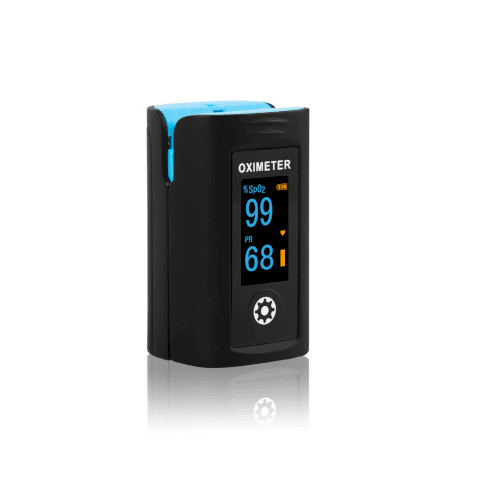

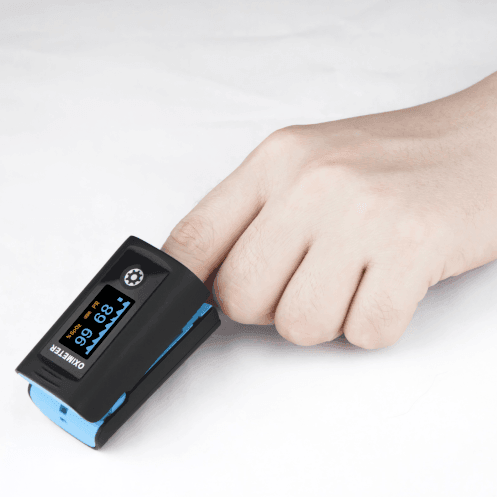

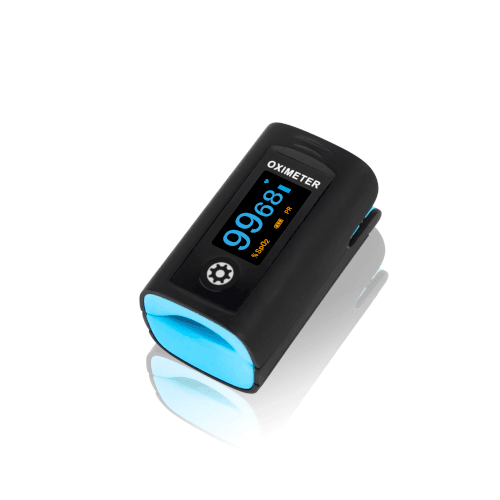

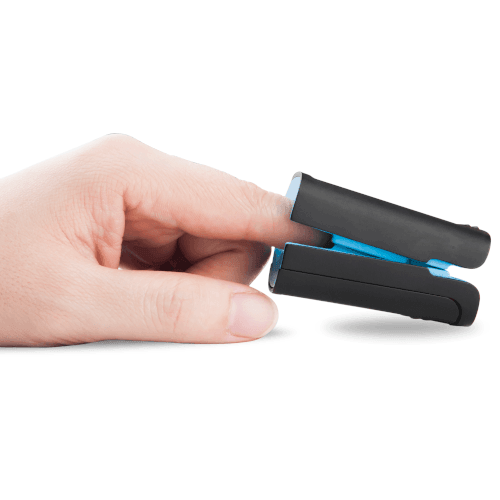

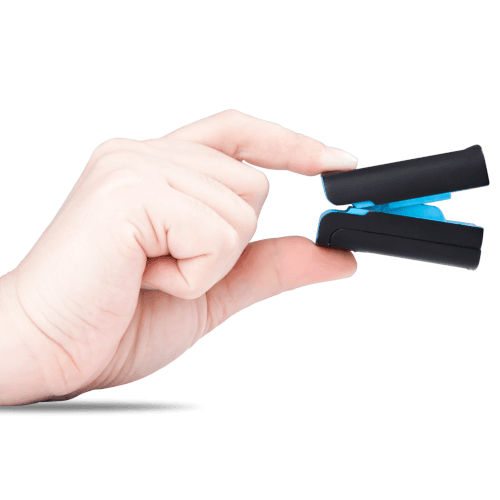

A small pulse oximeter intended for measuring the pulse oxygen saturation, pulse rate and perfusion index through a users finger. Suitable for monitoring of adult & paediatric patients in medical clinics, hospitals and at home.
Features
OLED display of SpO2, PR, PI, pulse bar & waveform
Spot check and continuous pulse oximeter measurement modes
Pulse rate analysis for spot check measurement
Up to 12 groups SpO2 data storage
Audible & visual alarm with low battery indication
Automatic power on/off
Four direction display
Artefact removal & anti motion
Accurate & sensitive
Specification
Spo2
Transducer: Dual-wavelength LED sensor
Measuring range: 35-100%
Measuring accuracy: ≤ 2% range from 70-100%
Pulse Rate
Measuring range: 30-240bpm
Measuring accuracy: ±2bpm or ±2% (whichever is the greater)
Perfusion Index
Display range: 0-20%
Default Alarm Limit
SpO2 low limit: 90%
Pulse rate high limit: 120bpm
Pulse rate low limit: 50bpm
Measuring Mode
30 seconds spot check mode
Continuous mode
Dimensions, Weight & Power
Dimensions: 56x34x30mm (L x W x H)
Weight: 52g
Power: 2 x AAA alkaline battery
Downloads
Brochure: Fingertip Pulse Oximeter
User Manual: Fingertip Pulse Oximeter User Manual
TGA listing: https://www.tga.gov.au/resources/artg/375867
Related Posts & Articles
Industry Articles
https://www.racgp.org.au/afp/2016/december/resuscitation-update-for-general-practitioners/
This product is designed and intended for use by individuals weighing 30 kilograms (kg) or more. If you weigh less than 30kg, we advise against using this product, as it may not provide the intended functionality or may pose potential risks.
